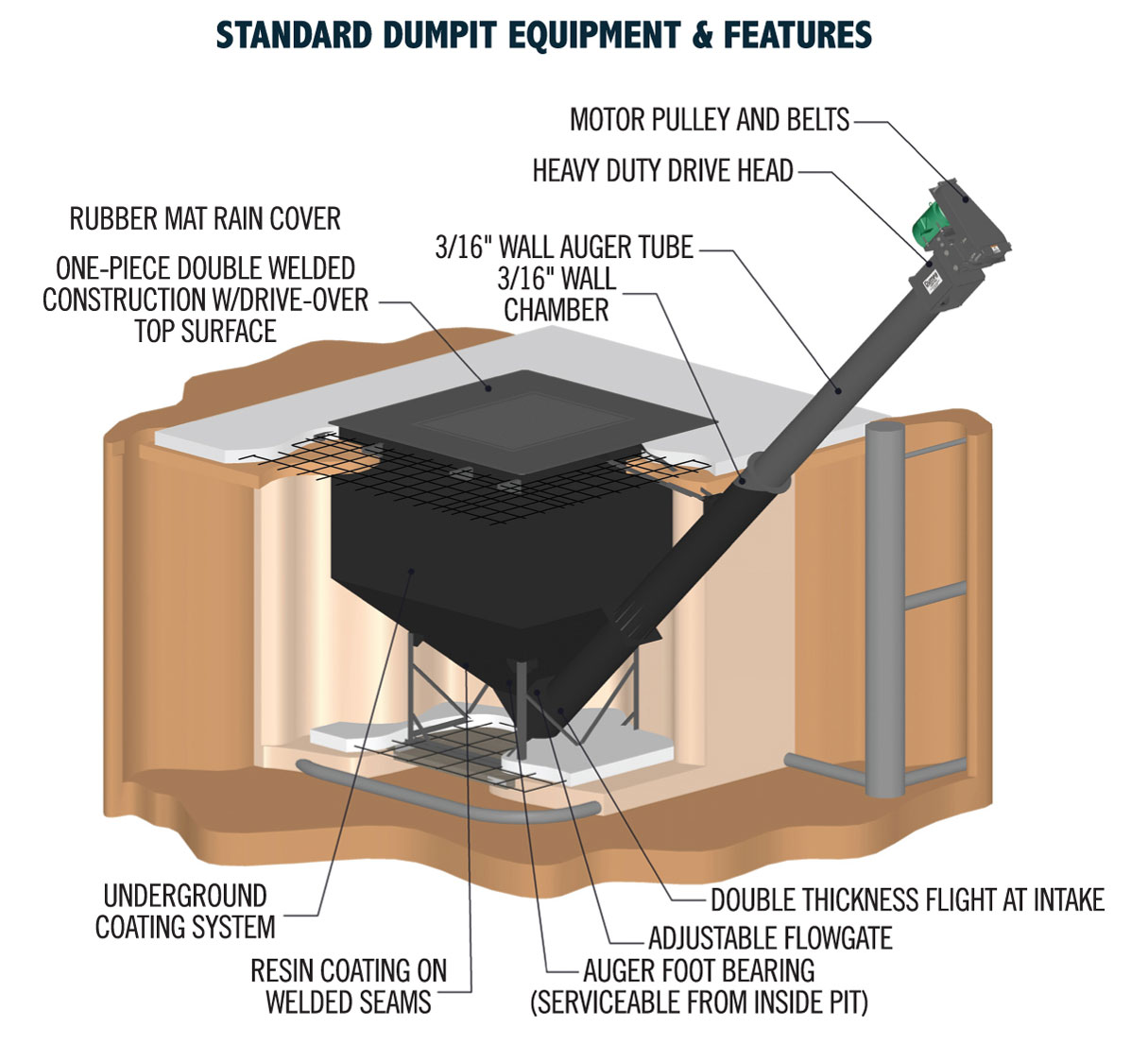

Standard Features

Drive-Over Lowry DumPits

The drive-over Lowry DumPit was designed with the goal of increasing the speed, safety and ease of harvesting. DumPits can be set up to move all the grain from the pit into a holding bin within a matter of a few minutes and be ready for the next truckload. The Lowry DumPit has proven to last for several harvest seasons with minimal maintenance.

Efficiency and Capacity

Unload entire truck in a matter of a few minutes
Sized from 22 bushels to 650 bushels
Optional arrangement of double pit system in any size
Double pit system holds up to 1,300 bushels
Large holding capacity allows for smaller leg and down spouts
Multiple grate options allow match to unloading area
Efficient and economical installation

High-Quality Solutions

One piece welded construction with drive over surface
Chamber allows ease of flight and tube replacement
Waterproof coated exterior
10 gauge sides, 7-gauge hopper, 3/16" deck plate with extra stiffeners
Abrasion resistant sectional flighting at intake
Inlet chutes for additional access to pit
Moving parts safely enclosed
Over 30 years of development to achieve high standards of design

Configurations: Standard and Custom
Design Options Available

Choose from our standard line or our team will customize a solution
to fit the requirements for your specific facility.

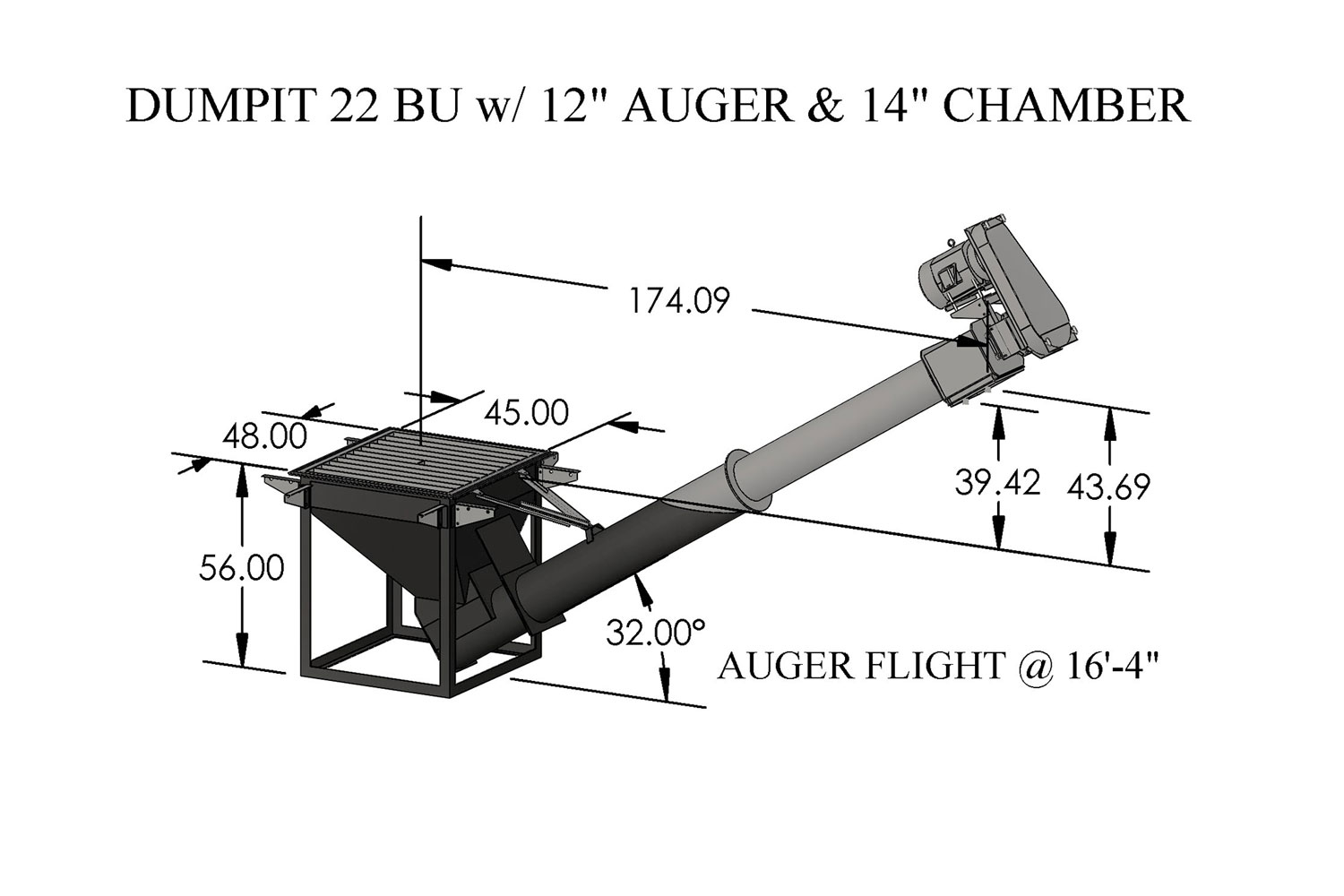

Useable Capacity	Auger Size	Bushels per hour	Horsepower required (for standard length)
22 Bushels	8 inch	1900	5
	10 inch	3000	7 1/2
	12 inch	4500	10
	14 inch	5500	15
	16 inch	7000	15

+

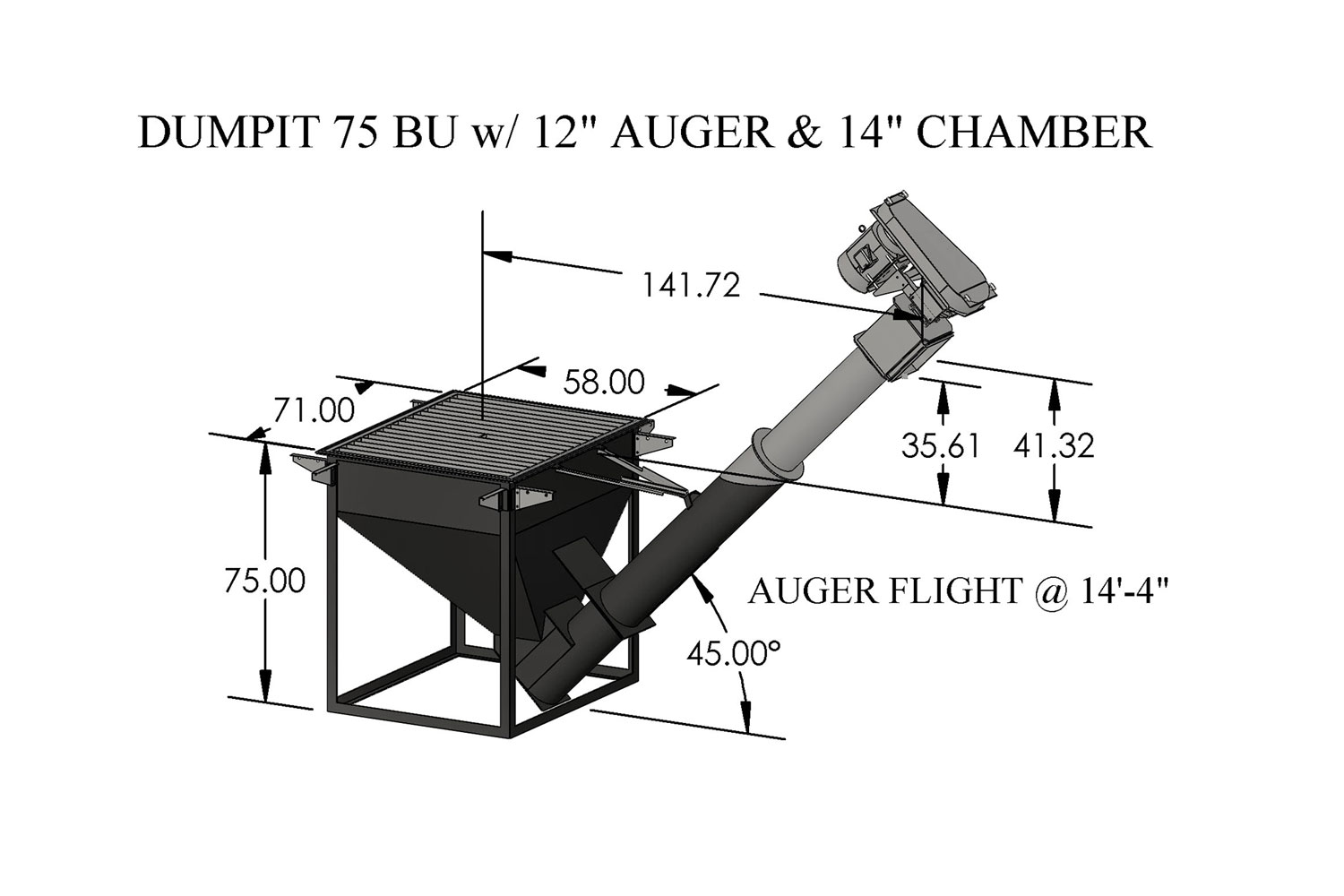

Useable Capacity	Auger Size	Bushels per hour	Horsepower required (for standard length)
75 Bushels	8 inch	1900	5
	10 inch	3000	7 1/2
	12 inch	4500	10
	14 inch	5500	15
	16 inch	7000	20

+

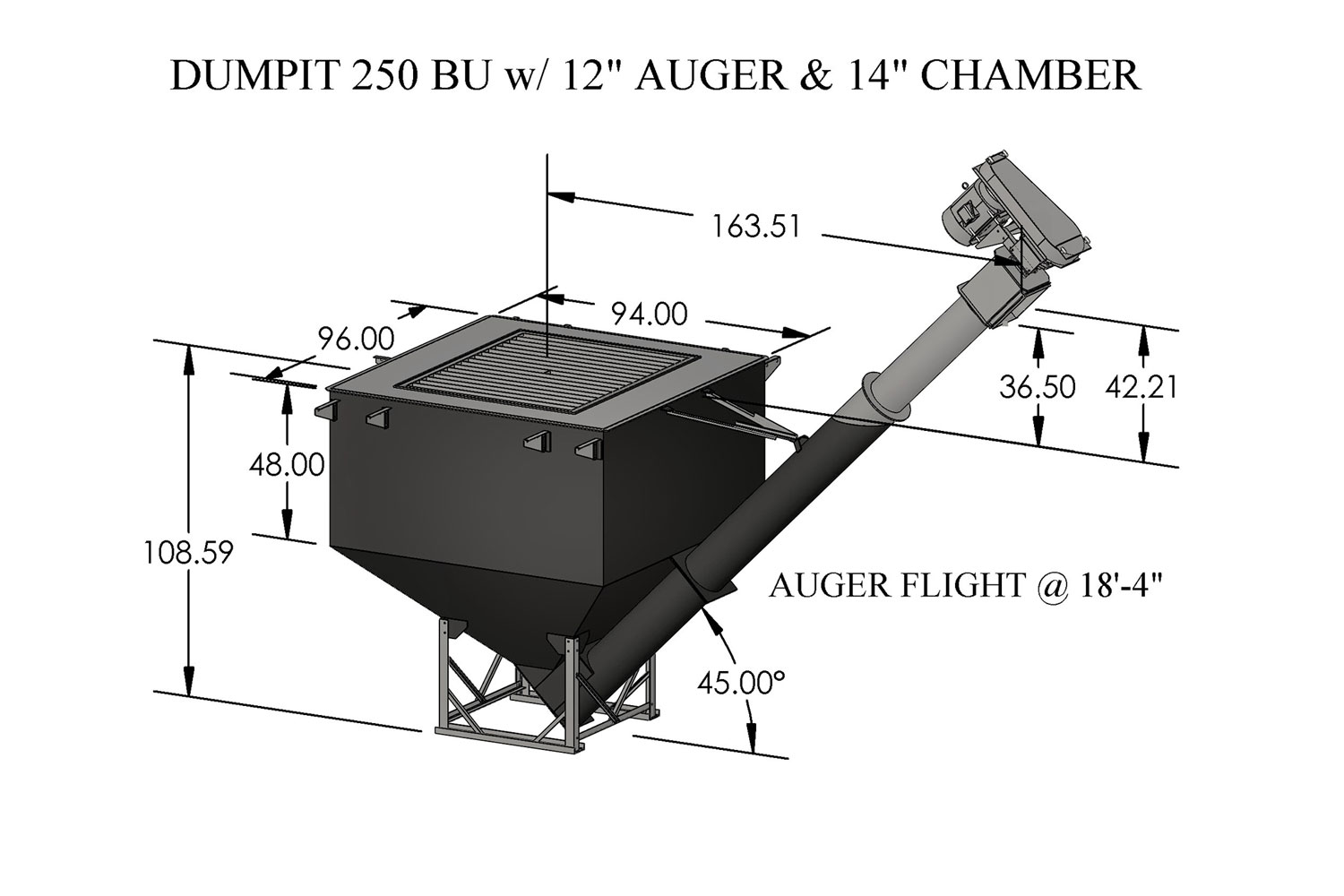

Useable Capacity	Auger Size	Bushels per hour	Horsepower required (for standard length)
250 Bushels	8 inch	1900	7 1/2
	10 inch	3000	10
	12 inch	4500	10
	14 inch	5500	15
	16 inch	7000	20

+

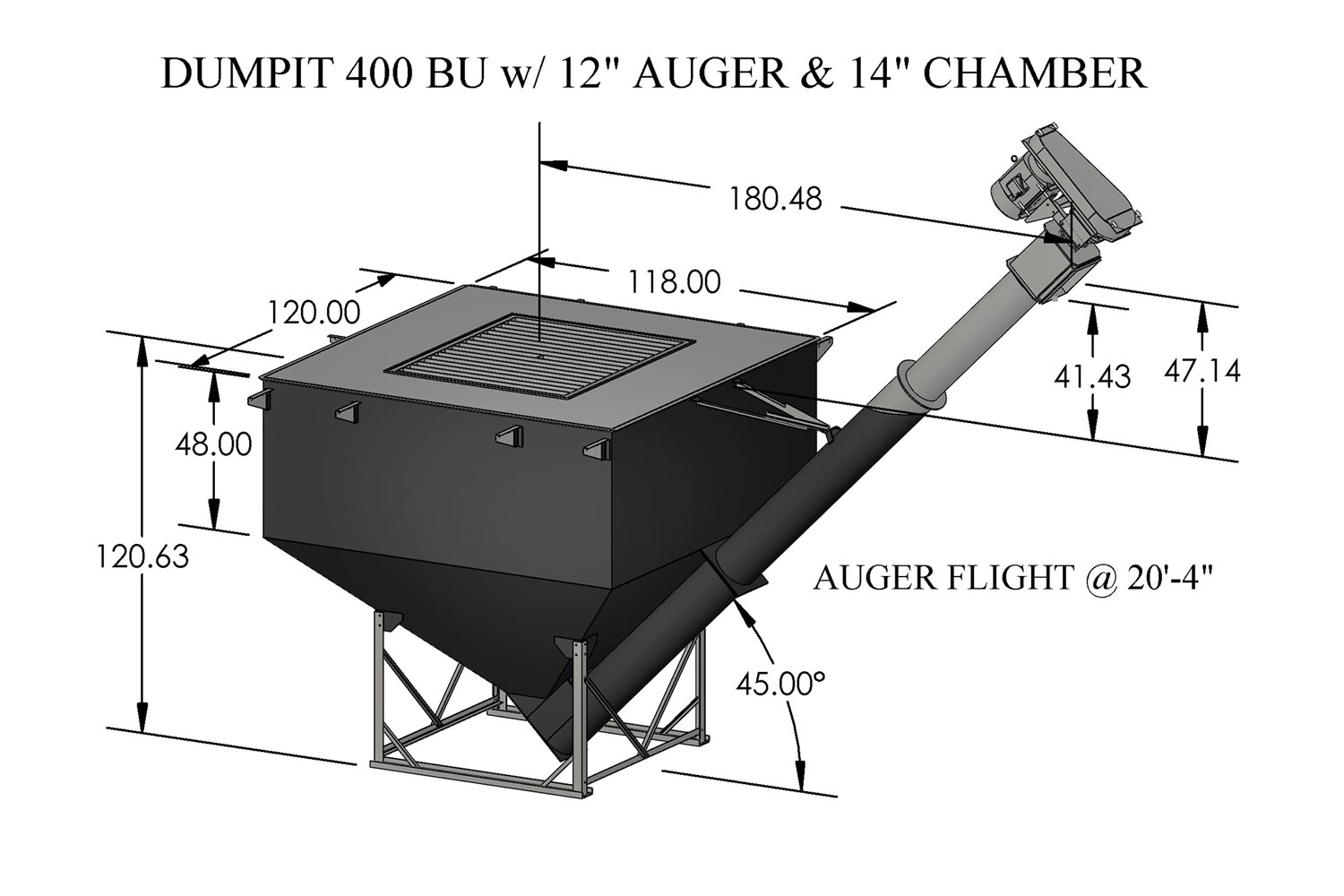

Useable Capacity	Auger Size	Bushels per hour	Horsepower required (for standard length)
400 Bushels	8 inch	1900	10
	10 inch	3000	10
	12 inch	4500	15
	14 inch	5500	20
	16 inch	7000	25

+

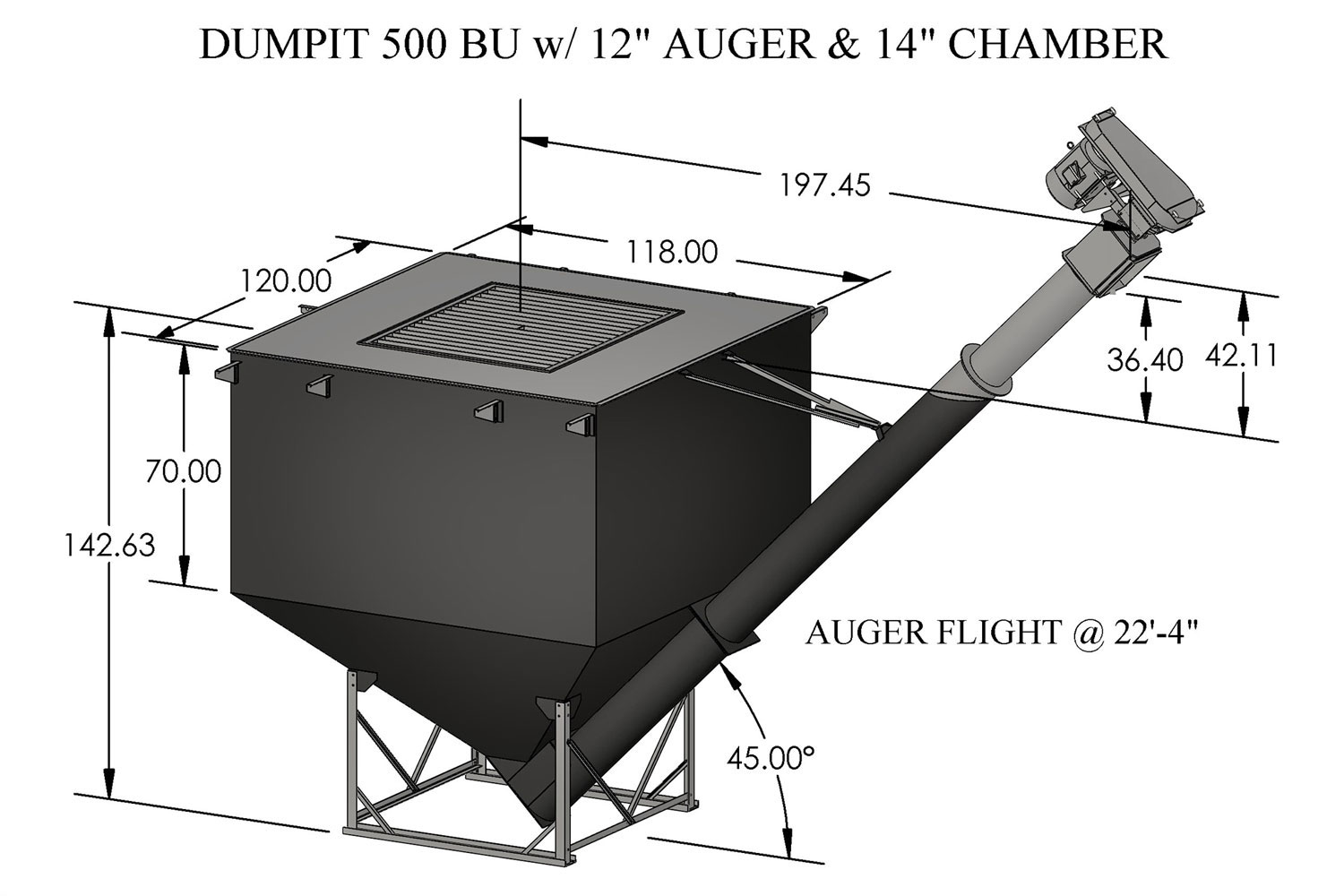

Useable Capacity	Auger Size	Bushels per hour	Horsepower required (for standard length)
500 Bushels	8 inch	1900	10
	10 inch	3000	10 to 15
	12 inch	4500	15
	14 inch	5500	20
	16 inch	7000	25

+

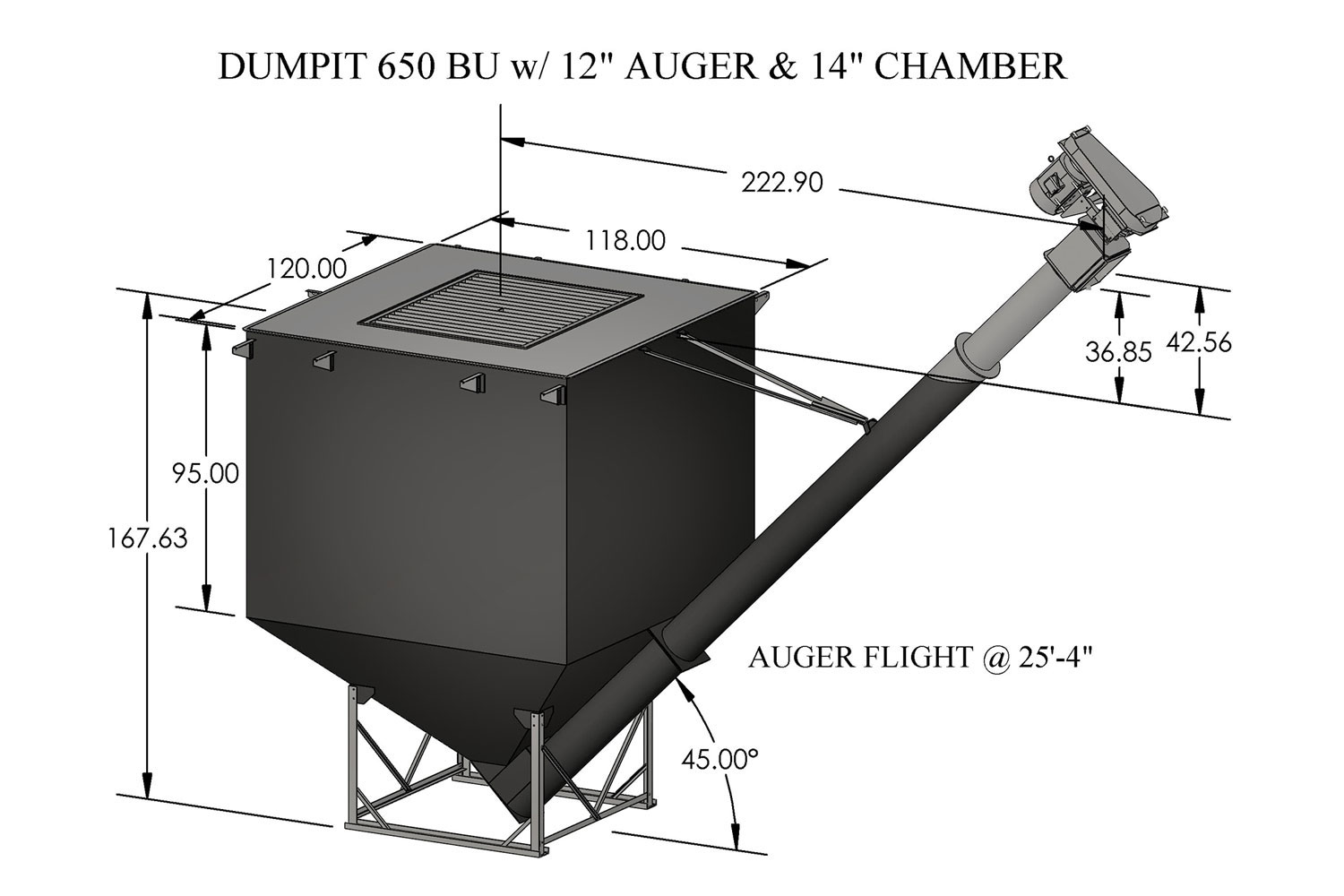

Useable Capacity	Auger Size	Bushels per hour	Horsepower required (for standard length)
650 Bushels	8 inch	1900	10
	10 inch	3000	15
	12 inch	4500	15
	14 inch	5500	20
	16 inch	7000	25

+

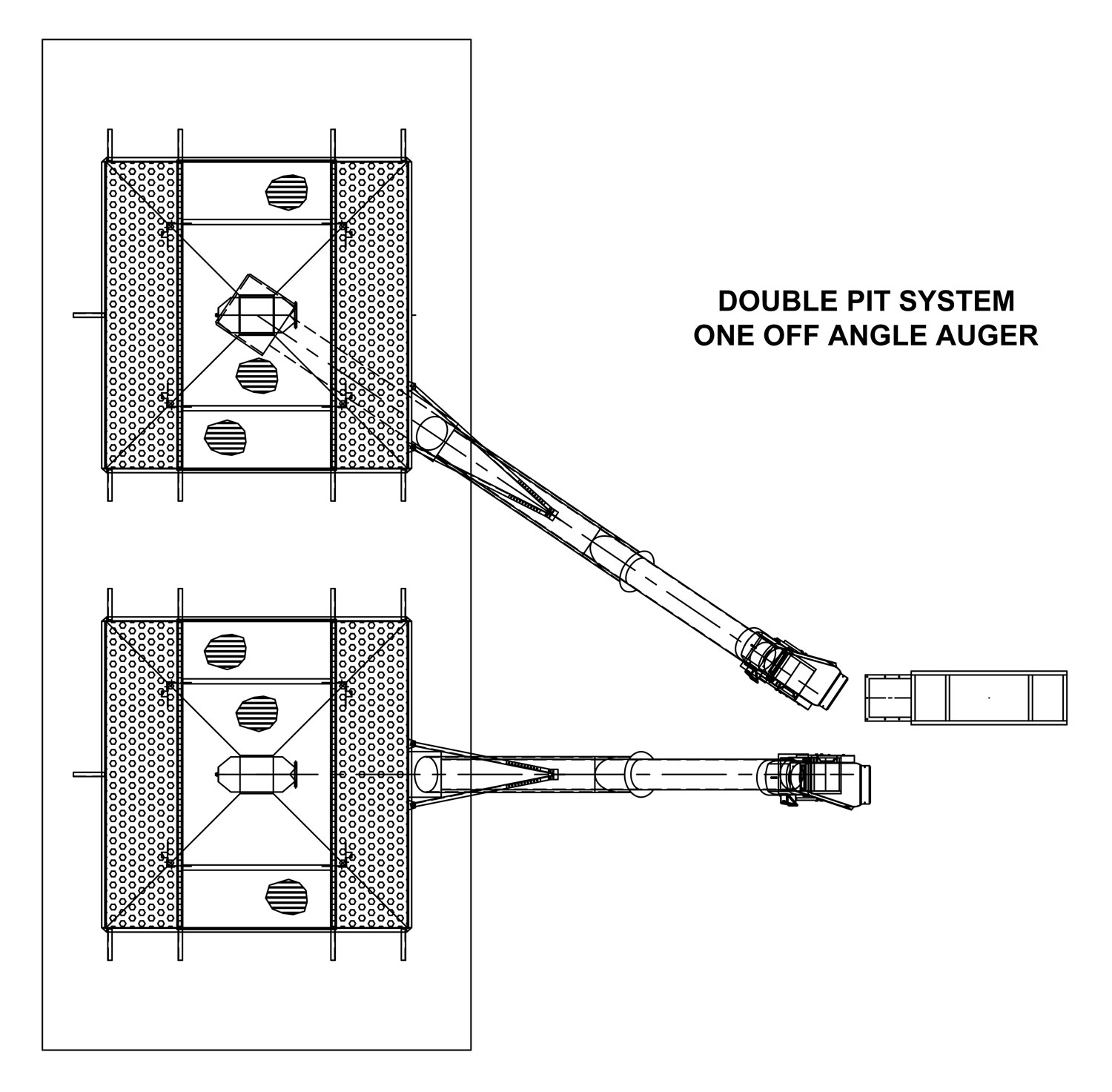

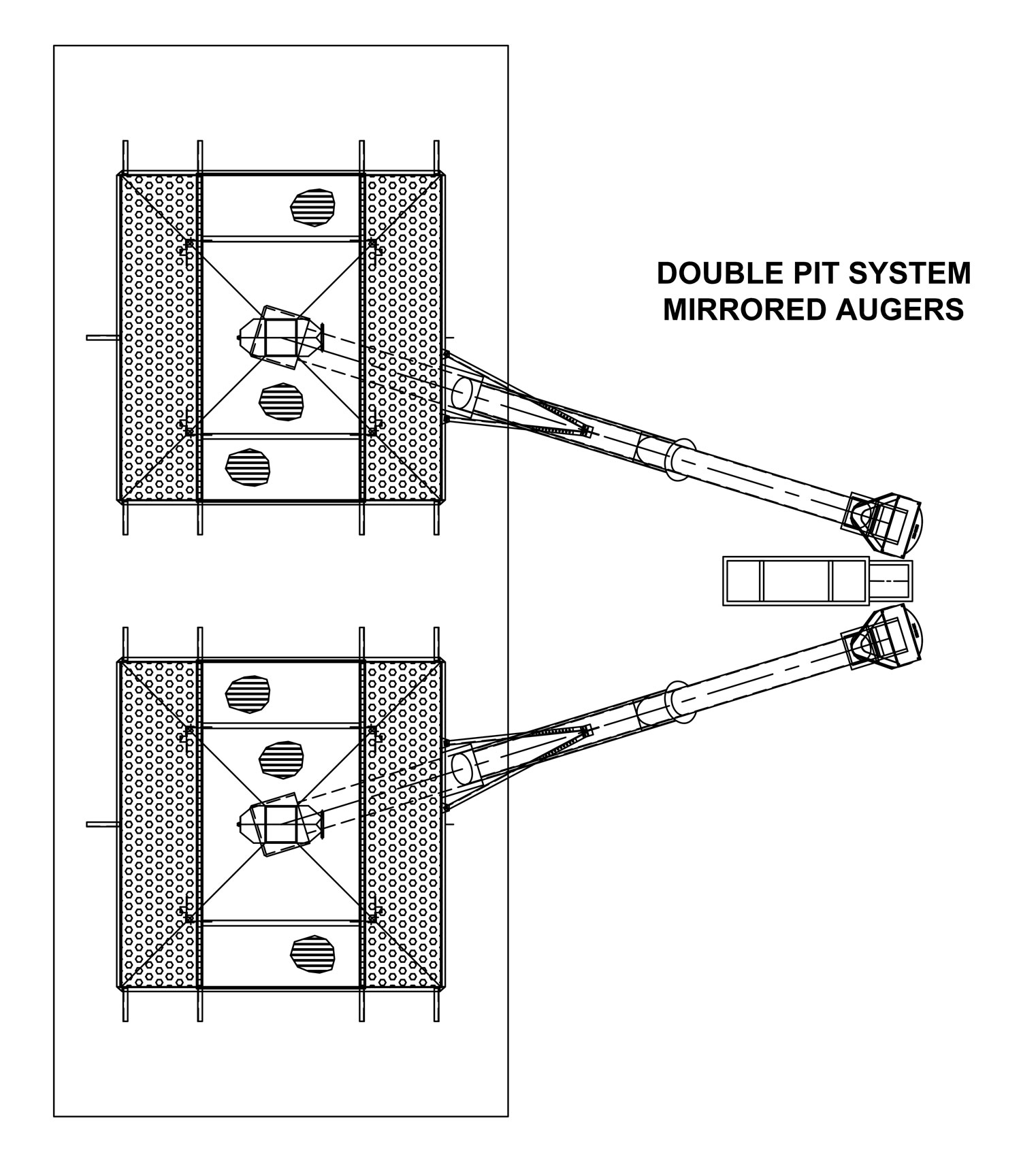

Double DumPit System

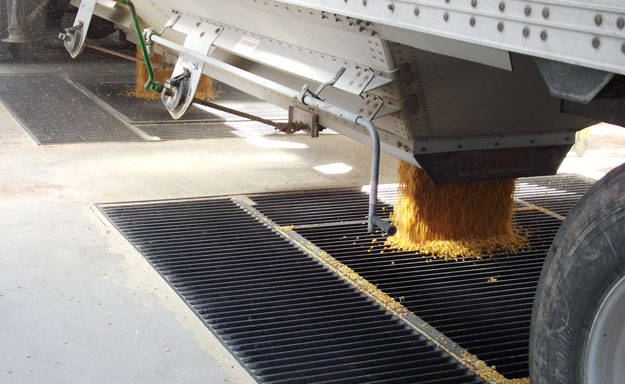

Many of our customers choose to install two DumPits in-line, which allows for a two-hopper semi-trailer to drive across and drop the entire load in as little as two minutes. Our most common sizes for double DumPit Systems are 500 or 650 bushels, but are available in any size. We customize spacing between pits to match discharge hoppers.
